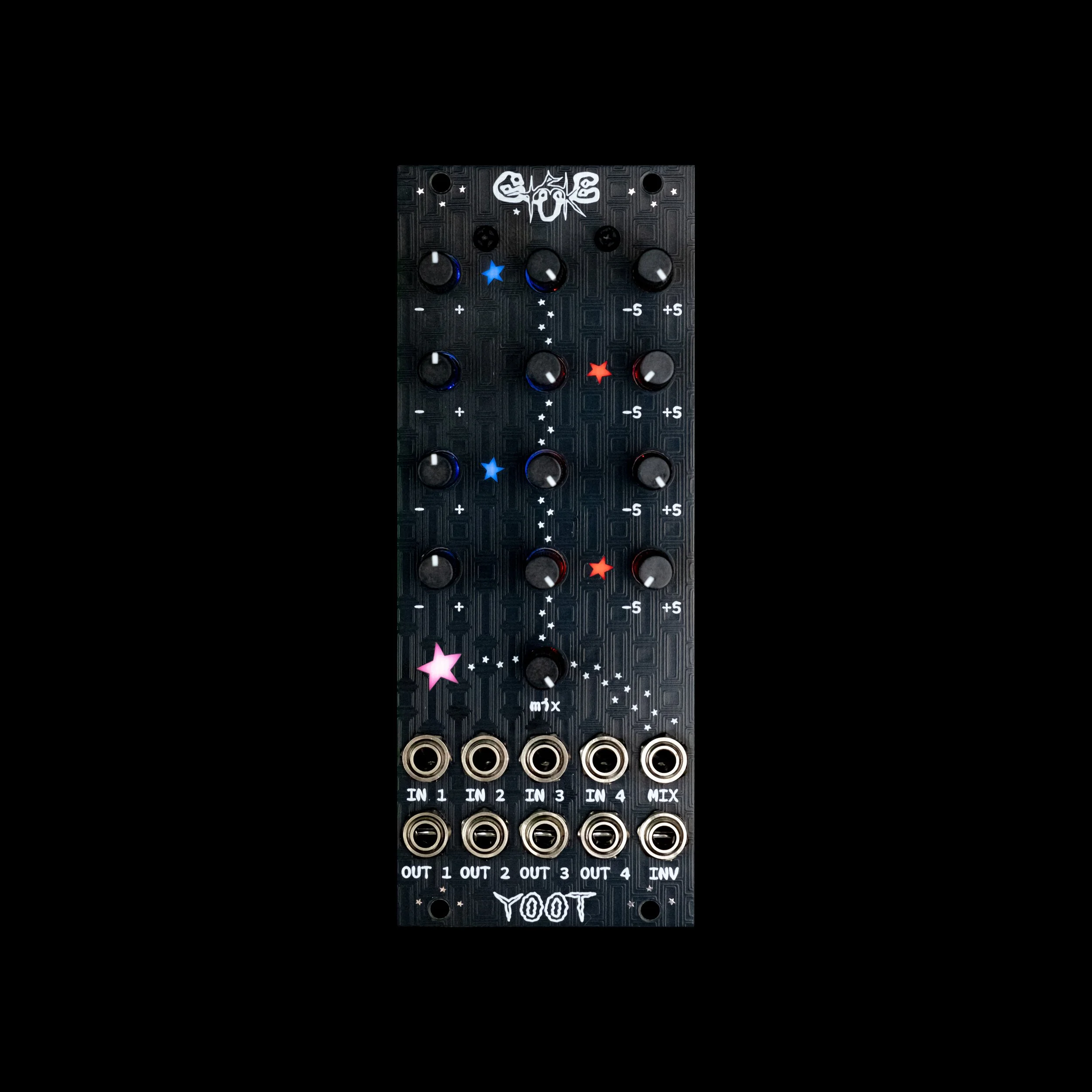

YOOT
YOOT is a versatile utility module featuring four channels of mixing, attenuversion, and DC offset, ideal for both audio and CV signals. Whether you’re fine-tuning modulations or in need of a reliable mixer, YOOT is a trusty addition to any rack.
Craft multiple variations of a single modulation source or blend simple signals to create unique and complex waveforms. Utilize the mixer section to distort signals through hard clipping, or experiment with feedback loops for added depth. Each channel features bipolar LED indicators, providing clear and immediate visual feedback.
YOOT is a versatile utility module featuring four channels of mixing, attenuversion, and DC offset, ideal for both audio and CV signals. Whether you’re fine-tuning modulations or in need of a reliable mixer, YOOT is a trusty addition to any rack.
Craft multiple variations of a single modulation source or blend simple signals to create unique and complex waveforms. Utilize the mixer section to distort signals through hard clipping, or experiment with feedback loops for added depth. Each channel features bipolar LED indicators, providing clear and immediate visual feedback.
YOOT is a versatile utility module featuring four channels of mixing, attenuversion, and DC offset, ideal for both audio and CV signals. Whether you’re fine-tuning modulations or in need of a reliable mixer, YOOT is a trusty addition to any rack.
Craft multiple variations of a single modulation source or blend simple signals to create unique and complex waveforms. Utilize the mixer section to distort signals through hard clipping, or experiment with feedback loops for added depth. Each channel features bipolar LED indicators, providing clear and immediate visual feedback.
Features
4 channels of attenuversion and adjustable DC offset (±5V).
An individual attenuator (pre-attenuversion and offset) per channel, allowing you to fine-tune the signal sent to the mix.
Bipolar LED output indicators per channel for clear visual feedback.
Normalized inputs for easy signal multiplication: route one signal across all four channels and sculpt them individually with attenuversion and offset.
A dedicated attenuator for the overall mix
Inverted mix output
Reverse power protection
Technical Specifications
Current Draw: +12V 65mA / -12V 65mA
Size: 10 HP
Depth: 30mm (with included power cable)
